Front - 27 x 9 in. x R14 CST
Rear - 27 x 11 in. x R14 CST
CST Clincher off-road
Wheels
Front / Rear - 14 in. Cast aluminum alloy with beadlocks
Dimensions
Length
92 in.
Width
50 in.
Ground Clearance
12 in.
Seat Height
22 in.
Height
57.7 in.
Weight
Dry - 975 lb.
Wheelbase
58 in.
Turning Radius
10.9 ft.
Drivetrain
Transmission
OmniDrive TM CVT P/R/N/H/L
Drive
2WD / 4WD / 4WD lock
Engine
Engine
V-twin, 4-stroke, SOHC, 8-valve
Horsepower
Max - 84 hp @ 7,500 rpm
Torque
Max - 62 ft. lb. @ 5,500 rpm
Fuel Capacity
6.9 gal.
Cooling
Liquid
Displacement
963 cc
Fuel System
Bosch® EFI with Work / Normal / Sport Modes
Starting
Electric
Operational
Suspension
Front - High clearance A-arm independent
Rear - Trailing arm independent
Front / Rear shocks - High pressure gas with piggyback reservoir, compression and
rebound adjustable
Front / Rear travel - 9 in.
Hitch
2 in. receiver
Steering

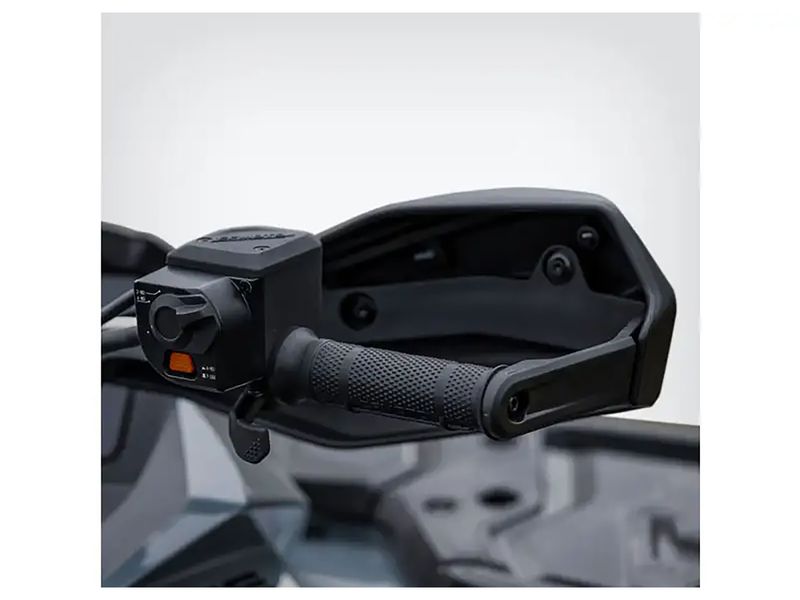

Adjustable Electronic Power
Other
Additional Colors
Zircon Black
Tundra Gray
True Timber Camo
Warranty
1 year factory
Includes
Steel Racks with Composite Cover, Hand Guards, Fender Flares, Front Bumpers, 12V
Outlet and USB Port, Downhill Assist Control
